torque 50N.m, can climb 25 degrees slope, off-road commuting ebike
Y16 Specifications
- Top Speed: Class 2/3, 28 Mph (45Km/h)
- Range: 30+miles (48km) in Class-2 throttle-only mode (pure electricity); 52+miles (84km) in Class-1 PAS (pedal assist)
- Motor: 48V Peak 1000W (Rated 750W) Brushless Rear Hub Motor 50N.m
- Battery: 48V 15Ah Battery (Lithium 18650 Cells)
- Energy: 720Wh
- Front Suspension: Double-Crown Front Fork, Total Length 630mm, Gap 135mm, 80mm Travel
- Rear Suspension: Dual Shock Absorbers, Hole Spacing 185mm, Poundage Wire Diameter 5mm
- Brakes: Double Disc Brakes, Equipped with 160mm Stainless Brake Disc
- Tires: ChaoYang All Terrain Tire 16" × 4.0" H5176 30TPI
- Throttle: Grip Twist Throttle
- Charger: 48V3A Charger
- Charging Time: 3.5-8.0 Hours

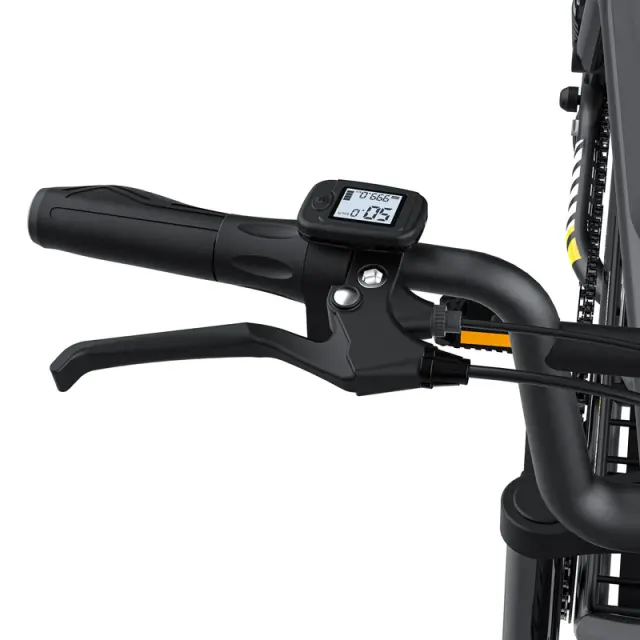

- Display: Easy Read LCD Display
- Controller: 48V 22A

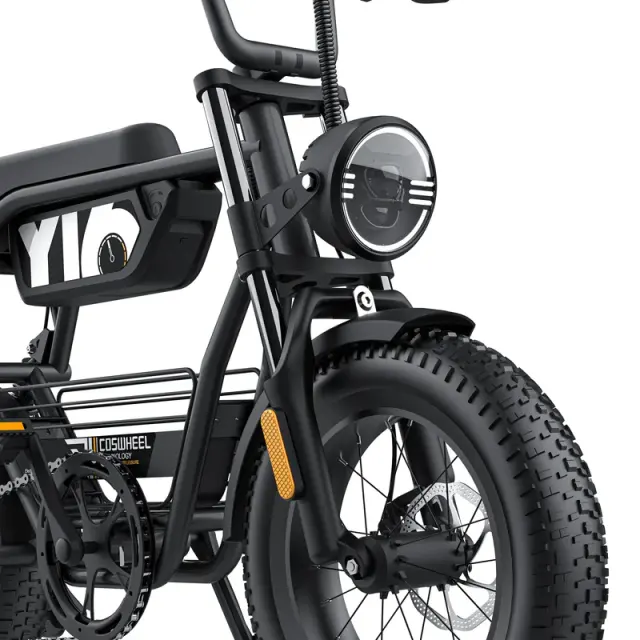

- Front Light: Classic Angel Eye Headlight, 120 LUX
- Rear Light: LED
- Pedal Assist: Single Levels
- Sensors: Speed Sensor
- Frame: Iron Frame
- Pedal: Black
- Crank: 46T Double Cover*Ffish Shape
- Rear Derailleur: Single Speed
- Chain: Anti-rust, 116 Mesh
- Handlebars: Black, 25.4*L:640mm*H:180mm, 17°
- Suitable Height: 4'11" - 5'11" (4.9ft-5.9ft)
- Seat Height: 29.53" (75cm)
- Bike Height: 39.37" (100cm)
- Wheelbase: 38.58" (98cm)
- Handlebar Width: 25.59" (65cm)
- Bike Weight: ≥97lbs (with Battery) (≥44kg)
- Maximum Load: 330lbs (150kg)
- Safe Load: 265lbs (120kg)
- Overall Size: 60.24" * 25.59" *39.37" (153*65*100cm)
- Package Size: 55.91" * 12.60" * 32.28" (142*32*82cm)
Front and Rear Suspension
The front suspension of Y16 is double-shoulder shock absorber with 80mm travel; the rear suspension is equipped with double spring shock absorber, which has stronger support.
02
Suitable For Women / Teenagers
The Y16 seat is 29.53" (75cm) above the ground, suitable for people 4'11" - 5'11" (4.9ft-5.9ft). Therefore, the Y16 is very friendly to women and teenagers and can be a good travel tool for them.
03
Double Cover Chain
The crank adopts a double cover chain design, which effectively reduces the risk of chain dropping and makes you ride more safely.
04
Center Shelf
There is a large storage rack under the frame where you can store your travel items, such as water bottles, umbrellas, thermal bags, etc.
05
Waterproof Chain
Brand new waterproof and rust-proof chain, silver-white.
06
Powerful Light Source
Equipped with high-quality front and rear lights to illuminate your way.
